SIMVI tutorial on MERFISH MTG data¶

In this tutorial, we illustrate the usage of SIMVI, and apply it to reproduce analysis result for MERFISH MTG data in Figs. 2-3 of the manuscript.

Import packages¶

[1]:

import scanpy as sc
import squidpy as sq

import numpy as np
import pandas as pd

Import and preprocess datasets¶

[2]:

adata1 = sc.read_h5ad('datasets/merfish/H18.06.006.MTG.4000.expand.rep1.h5ad')
adata2 = sc.read_h5ad('datasets/merfish/H18.06.006.MTG.4000.expand.rep2.h5ad')
adata3 = sc.read_h5ad('datasets/merfish/H18.06.006.MTG.4000.expand.rep3.h5ad')
adata1.obs['batch'] = 'H18.06.006.MTG.4000.rep1'
adata2.obs['batch'] = 'H18.06.006.MTG.4000.rep2'
adata3.obs['batch'] = 'H18.06.006.MTG.4000.rep3'

adata1.obs['coord'] = adata1.obsm['spatial'][:,1]
adata1.obs['niche'] = 'N1'
adata1.obs['niche'][adata1.obs['coord']> -1500] = 'N2'
adata1.obs['niche'][adata1.obs['coord']> -1000] = 'N3'
adata1.obs['niche'][adata1.obs['coord']> -200] = 'N4'
adata1.obs['niche'][adata1.obs['coord']> 350] = 'N5'

adata2.obs['coord'] = np.sqrt((adata2.obsm['spatial'][:,0]+3000) ** 2 + (adata2.obsm['spatial'][:,1]-400) ** 2)
adata2.obs['niche'] = 'N6'
adata2.obs['niche'][adata2.obs['coord']> 2100] = 'N5'
adata2.obs['niche'][adata2.obs['coord']> 3600] = 'N4'

adata3.obs['coord'] = np.sqrt((adata3.obsm['spatial'][:,0]-3000) ** 2 + (adata3.obsm['spatial'][:,1]-1300) ** 2)
adata3.obs['niche'] = 'N6'
adata3.obs['niche'][adata3.obs['coord']> 2000] = 'N5'
adata3.obs['niche'][adata3.obs['coord']> 3900] = 'N4'
adata3.obs['niche'][adata3.obs['coord']> 4350] = 'N3'
adata3.obs['niche'][adata3.obs['coord']> 5600] = 'N2'
adata3.obs['niche'][adata3.obs['coord']> 6000] = 'N1'

adata_mtg = sc.concat([adata1,adata2,adata3])
adata_mtg.obs_names_make_unique()
adata_mtg

/tmp/ipykernel_92204/3933570242.py:10: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata1.obs['niche'][adata1.obs['coord']> -1500] = 'N2'
/tmp/ipykernel_92204/3933570242.py:11: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata1.obs['niche'][adata1.obs['coord']> -1000] = 'N3'
/tmp/ipykernel_92204/3933570242.py:12: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata1.obs['niche'][adata1.obs['coord']> -200] = 'N4'
/tmp/ipykernel_92204/3933570242.py:13: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata1.obs['niche'][adata1.obs['coord']> 350] = 'N5'
/tmp/ipykernel_92204/3933570242.py:17: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata2.obs['niche'][adata2.obs['coord']> 2100] = 'N5'
/tmp/ipykernel_92204/3933570242.py:18: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata2.obs['niche'][adata2.obs['coord']> 3600] = 'N4'
/tmp/ipykernel_92204/3933570242.py:22: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata3.obs['niche'][adata3.obs['coord']> 2000] = 'N5'
/tmp/ipykernel_92204/3933570242.py:23: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata3.obs['niche'][adata3.obs['coord']> 3900] = 'N4'
/tmp/ipykernel_92204/3933570242.py:24: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata3.obs['niche'][adata3.obs['coord']> 4350] = 'N3'
/tmp/ipykernel_92204/3933570242.py:25: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata3.obs['niche'][adata3.obs['coord']> 5600] = 'N2'
/tmp/ipykernel_92204/3933570242.py:26: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata3.obs['niche'][adata3.obs['coord']> 6000] = 'N1'
/usr/local/lib/python3.8/dist-packages/anndata/_core/anndata.py:1828: UserWarning: Observation names are not unique. To make them unique, call `.obs_names_make_unique`.
  utils.warn_names_duplicates("obs")

[2]:

AnnData object with n_obs × n_vars = 11059 × 4000
    obs: 'name', 'global.x', 'global.y', 'adjusted.x', 'adjusted.y', 'fov.x', 'fov.y', 'cluster_L1', 'cluster_L2', 'cluster_L3', 'batch', 'coord', 'niche'
    obsm: 'spatial'

Run SIMVI model¶

[3]:

from simvi.model import SimVI
SimVI.setup_anndata(adata_mtg,batch_key='batch')
edge_index = SimVI.extract_edge_index(adata_mtg,n_neighbors=10,batch_key='batch')
from pytorch_lightning.utilities.seed import seed_everything
seed_everything(0)
model = SimVI(adata_mtg,kl_weight=1,kl_gatweight=0.01,lam_mi=1000,permutation_rate=0.5,n_spatial=20,n_intrinsic=20)
train_loss, val_loss = model.train(edge_index,max_epochs=100,batch_size=500,use_gpu=True,mae_epochs=25)
adata_mtg.obsm['simvi_z'] = model.get_latent_representation(edge_index,representation_kind='intrinsic',give_mean=True)
adata_mtg.obsm['simvi_s'] = model.get_latent_representation(edge_index,representation_kind='interaction',give_mean=True)

Global seed set to 0
No GPU/TPU found, falling back to CPU. (Set TF_CPP_MIN_LOG_LEVEL=0 and rerun for more info.)
Global seed set to 0
Epoch 100/100: 100%|███████████████████████| 100/100 [06:01<00:00,  3.61s/it, train_loss=1.43e+3, val_loss=1434.5796]

We next visualize the intrinsic and spatial variations generated from SIMVI. In the step of visualizing SIMVI spatial variation, we log normalized and visualized the expression of MYH11.

[4]:

import matplotlib.pyplot as plt
plt.rcParams['figure.dpi'] = 200
plt.rcParams["font.size"] = 18
adata_mtg.uns['niche_colors'] = ['#c7e9b4','#7fcdbb','#41b6c4','#2c7fb8','#253494','#081d58']
sc.pp.neighbors(adata_mtg,use_rep='simvi_z')
sc.tl.umap(adata_mtg)
sc.pl.umap(adata_mtg,color=['cluster_L1','batch'],title=['Cell type','Batch'],cmap='Oranges',vmax='p99.5',wspace=0.5)

2024-10-23 00:34:31.304573: W tensorflow/compiler/tf2tensorrt/utils/py_utils.cc:38] TF-TRT Warning: Could not find TensorRT
/usr/local/lib/python3.8/dist-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(
/usr/local/lib/python3.8/dist-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(

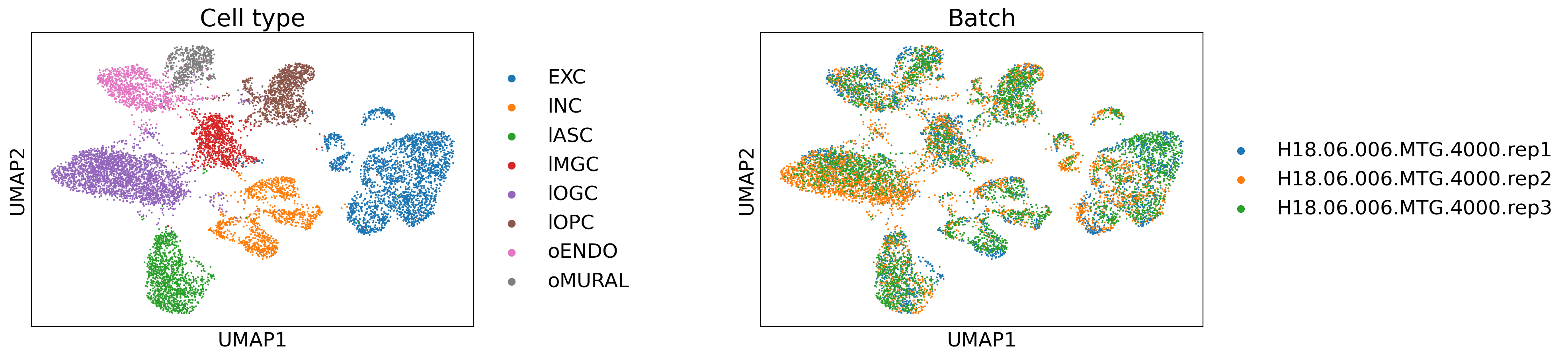

../../_images/simvi_tutorials_SIMVI_tutorial_MERFISH_9_1.png

[ ]:

sc.pp.normalize_total(adata_mtg)
sc.pp.log1p(adata_mtg)
import matplotlib.pyplot as plt

sc.pp.neighbors(adata_mtg,use_rep='simvi_s')
sc.tl.umap(adata_mtg)
sc.pl.umap(adata_mtg,color=['niche','MYH11','batch'],title=['Niche','MYH11','Batch'],cmap='Oranges',vmax='p99.5',wspace=0.25)

/usr/local/lib/python3.8/dist-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(
/usr/local/lib/python3.8/dist-packages/scanpy/plotting/_tools/scatterplots.py:392: UserWarning: No data for colormapping provided via 'c'. Parameters 'cmap' will be ignored
  cax = scatter(

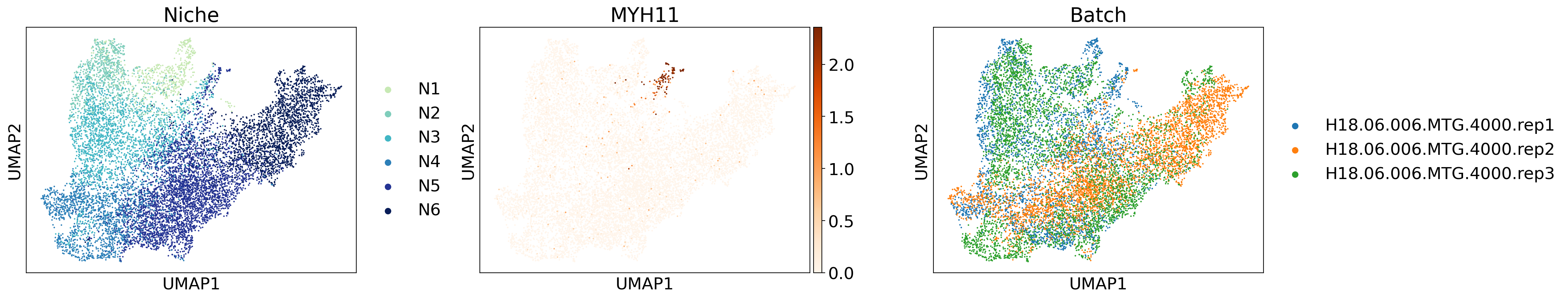

../../_images/simvi_tutorials_SIMVI_tutorial_MERFISH_10_1.png

We can see that the UMAP visualization here is mostly the same with the result in the manuscript up to some rotation, which is due to the UMAP random seed.

Spatial effect analysis¶

We then leveraged the extracted intrinsic and spatial variations to conduct a spatial effect analysis. Given that we had already applied a log1p transformation, we set the transformation parameter to ‘none’. Running model.get_se can take a while but not too long. It’s worth noting that due to the random seed, our results here exhibit minor discrepancies compared to those presented in the manuscript.

[6]:

seed_everything(0)
se_list, r2_zlist, r2_slist, r2_zpvlist, r2_spvlist, S = model.get_se(edge_index,adata=adata_mtg,num_arch =7, Kfold=1,transformation = 'none',cell_type_label='cluster_L2',batch_label='batch')
se = np.sum(se_list,axis=0)
adata_mtg.var['r2_z'] = np.max(r2_zlist,axis=0)
adata_mtg.var['r2_s'] = np.max(r2_slist,axis=0)

Global seed set to 0
/app/home/mingze/SimVI_Project/simvi/model/simvi.py:1055: RuntimeWarning: divide by zero encountered in true_divide
  fstat = (Rsq/(1-Rsq))*((N-K-1)/K)
/app/home/mingze/SimVI_Project/simvi/model/simvi.py:1055: RuntimeWarning: divide by zero encountered in true_divide
  fstat = (Rsq/(1-Rsq))*((N-K-1)/K)
/app/home/mingze/SimVI_Project/simvi/model/simvi.py:1055: RuntimeWarning: divide by zero encountered in true_divide
  fstat = (Rsq/(1-Rsq))*((N-K-1)/K)
/app/home/mingze/SimVI_Project/simvi/model/simvi.py:1055: RuntimeWarning: divide by zero encountered in true_divide
  fstat = (Rsq/(1-Rsq))*((N-K-1)/K)
/app/home/mingze/SimVI_Project/simvi/model/simvi.py:1055: RuntimeWarning: divide by zero encountered in true_divide
  fstat = (Rsq/(1-Rsq))*((N-K-1)/K)
/app/home/mingze/SimVI_Project/simvi/model/simvi.py:1055: RuntimeWarning: divide by zero encountered in true_divide
  fstat = (Rsq/(1-Rsq))*((N-K-1)/K)
/app/home/mingze/SimVI_Project/simvi/model/simvi.py:1055: RuntimeWarning: divide by zero encountered in true_divide
  fstat = (Rsq/(1-Rsq))*((N-K-1)/K)

[20]:

adata_mtg.obsm['S'] = pd.DataFrame(S[:,[0,5,1,4,6,3,2]],columns = ['Archetype ' + str(i+1) for i in range(S.shape[1])],index=adata_mtg.obs_names)
tt = ['Archetype ' + str(i+1) for i in range(S.shape[1])]
sc.pl.spatial(sq.pl.extract(adata_mtg[adata_mtg.obs['batch']==adata_mtg.obs['batch'].unique()[0]],'S'),color=tt,vmax=0.9,spot_size=40,cmap='Blues',wspace=0,show=False)
plt.tight_layout()

/tmp/ipykernel_92204/3164081792.py:4: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  plt.tight_layout()

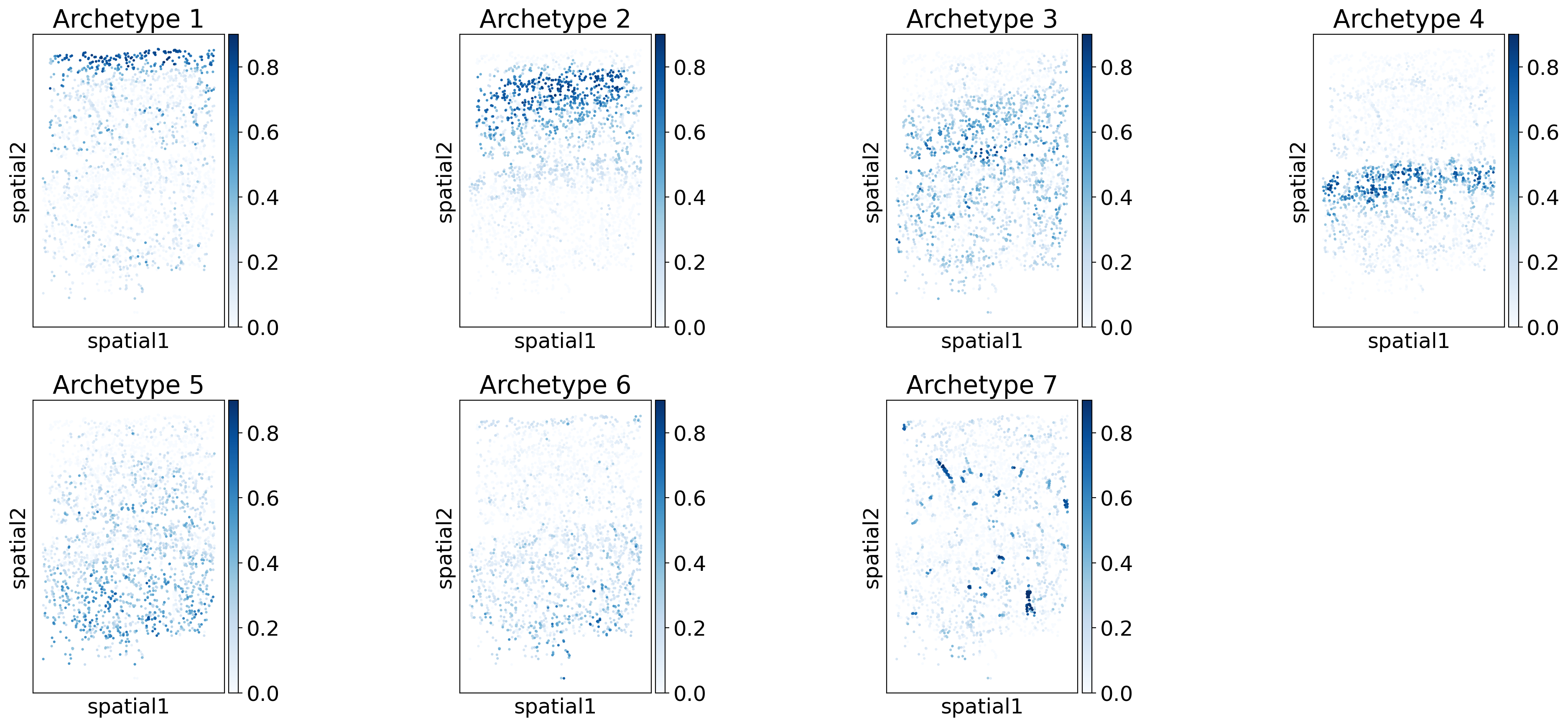

../../_images/simvi_tutorials_SIMVI_tutorial_MERFISH_14_1.png

[21]:

sc.pl.spatial(sq.pl.extract(adata_mtg[adata_mtg.obs['batch']==adata_mtg.obs['batch'].unique()[1]],'S'),color=tt,vmax=0.9,spot_size=40,cmap='Blues',wspace=0.2)

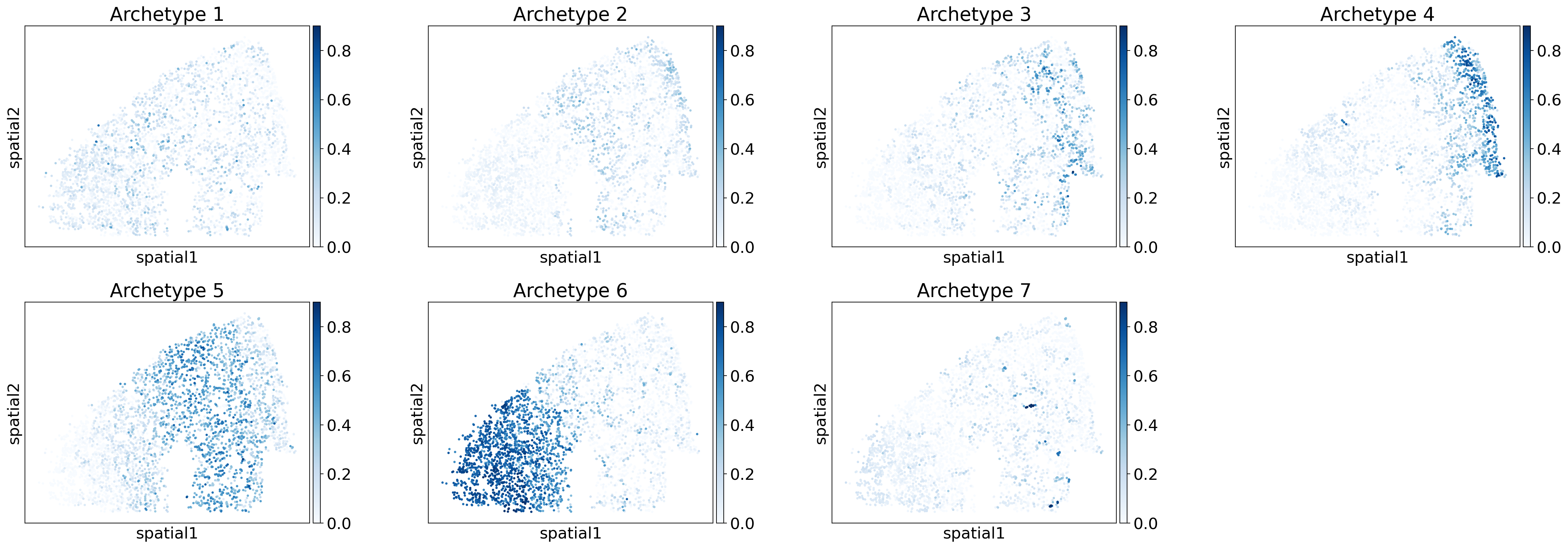

../../_images/simvi_tutorials_SIMVI_tutorial_MERFISH_15_0.png

[22]:

sc.pl.spatial(sq.pl.extract(adata_mtg[adata_mtg.obs['batch']==adata_mtg.obs['batch'].unique()[2]],'S'),color=tt,vmax=0.9,spot_size=40,cmap='Blues',wspace=0.2)

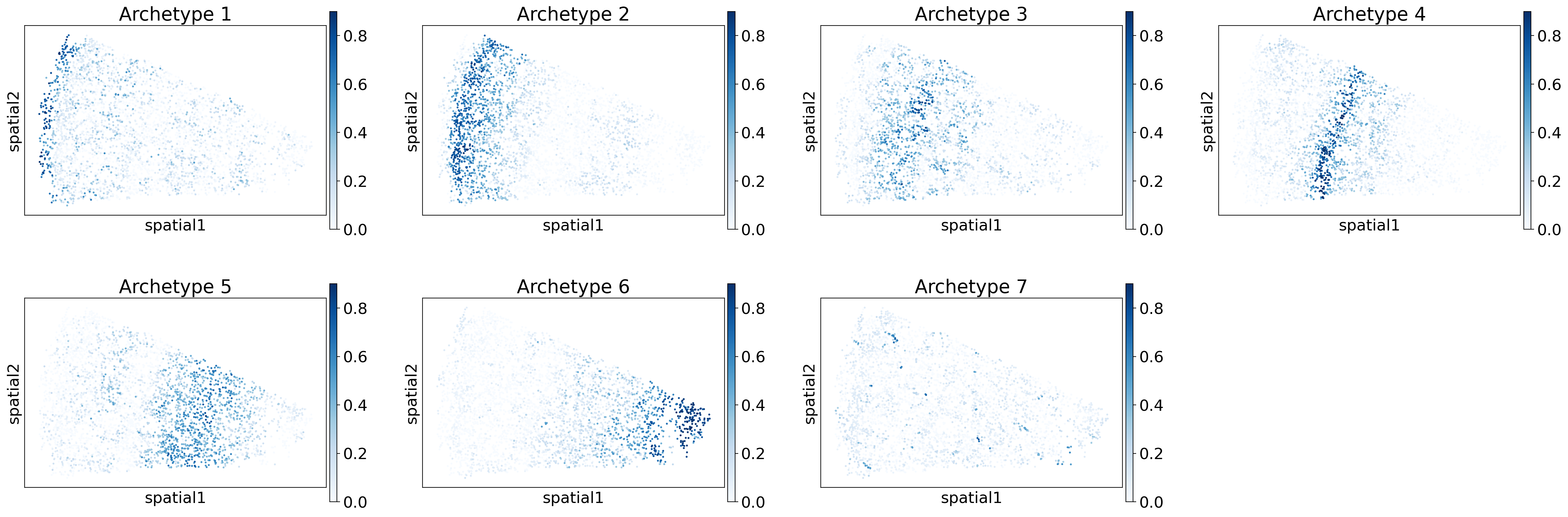

../../_images/simvi_tutorials_SIMVI_tutorial_MERFISH_16_0.png

[10]:

adata_mtg_ = adata_mtg.copy()
sc.pp.highly_variable_genes(adata_mtg_,n_top_genes=1000)
adata_mtg_ = adata_mtg_[:,adata_mtg_.var['means']>0.1]
adata_mtg_

[10]:

View of AnnData object with n_obs × n_vars = 11059 × 1561
    obs: 'name', 'global.x', 'global.y', 'adjusted.x', 'adjusted.y', 'fov.x', 'fov.y', 'cluster_L1', 'cluster_L2', 'cluster_L3', 'batch', 'coord', 'niche', '_scvi_batch', '_scvi_labels'
    var: 'r2_z', 'r2_s', 'highly_variable', 'means', 'dispersions', 'dispersions_norm'
    uns: '_scvi_uuid', '_scvi_manager_uuid', 'niche_colors', 'neighbors', 'umap', 'cluster_L1_colors', 'batch_colors', 'log1p', 'hvg'
    obsm: 'spatial', 'simvi_z', 'simvi_s', 'X_umap', 'S'
    obsp: 'distances', 'connectivities'

[11]:

from sklearn.linear_model import HuberRegressor

hr = HuberRegressor()
hr.fit(adata_mtg_.var['r2_z'].values.reshape(-1,1),adata_mtg_.var['r2_s'].values)


adata_mtg_.var['class'] = 'Others'

adata_mtg_.var['class'][adata_mtg_.var['r2_z']>0.6] = 'Intrinsic-specific'
adata_mtg_.var['class'][np.abs(adata_mtg_.var['r2_s'].values - hr.predict(adata_mtg_.var['r2_z'].values.reshape(-1,1)) ) / hr.scale_ > 10] = 'Spatial-induced'

import matplotlib.pyplot as plt
plt.rcParams['figure.dpi'] = 200
plt.rcParams["font.size"] = 18

adata_mtg_.uns['class_colors'] = ['#33a02c','#bdbdbd','#084594']



sc.pl.scatter(adata_mtg_.copy(),x='r2_z',y='r2_s',show=False,color='class')
plt.plot(adata_mtg_.var['r2_z'].values[np.argsort(adata_mtg_.var['r2_z'].values)],hr.predict(adata_mtg_.var['r2_z'].values.reshape(-1,1))[np.argsort(adata_mtg_.var['r2_z'].values)])

for i in range(adata_mtg_.var['r2_s'].shape[0]):
    if adata_mtg_.var['r2_s'][i] > 0.082:
        plt.text(adata_mtg_.var['r2_z'][i]-0.05,adata_mtg_.var['r2_s'][i]-0.014,adata_mtg_.var_names[i],fontsize=12)

plt.xlabel('Intrinsic variation r^2')
plt.ylabel('Spatial effect r^2')
plt.title('')

/tmp/ipykernel_92204/3052341457.py:7: ImplicitModificationWarning: Trying to modify attribute `.var` of view, initializing view as actual.
  adata_mtg_.var['class'] = 'Others'
/tmp/ipykernel_92204/3052341457.py:9: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata_mtg_.var['class'][adata_mtg_.var['r2_z']>0.6] = 'Intrinsic-specific'
/tmp/ipykernel_92204/3052341457.py:10: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
  adata_mtg_.var['class'][np.abs(adata_mtg_.var['r2_s'].values - hr.predict(adata_mtg_.var['r2_z'].values.reshape(-1,1)) ) / hr.scale_ > 10] = 'Spatial-induced'

[11]:

Text(0.5, 1.0, '')

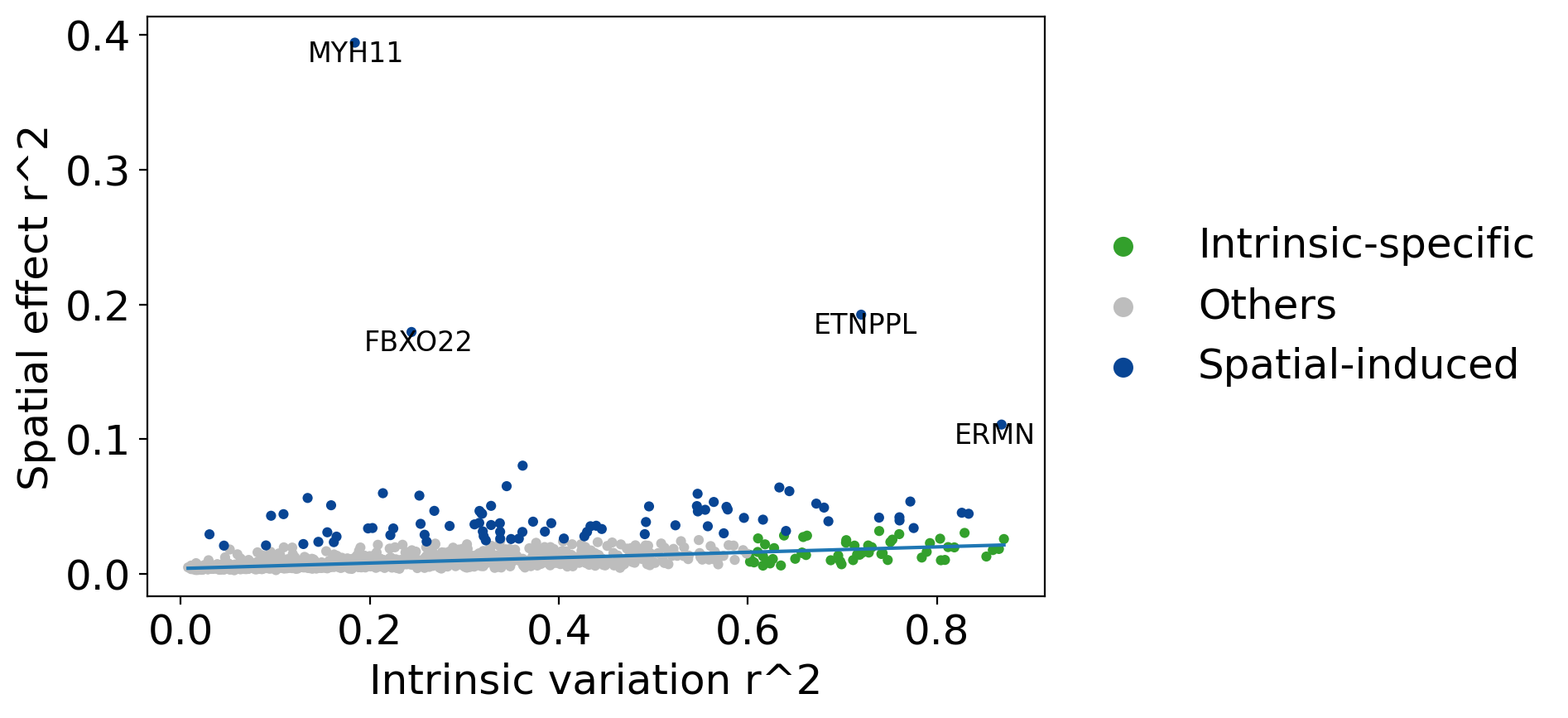

../../_images/simvi_tutorials_SIMVI_tutorial_MERFISH_18_2.png
